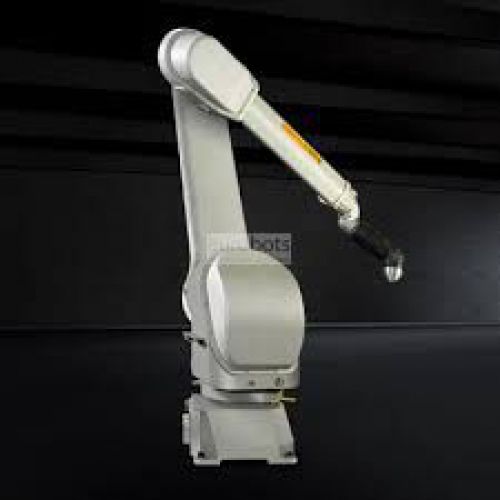

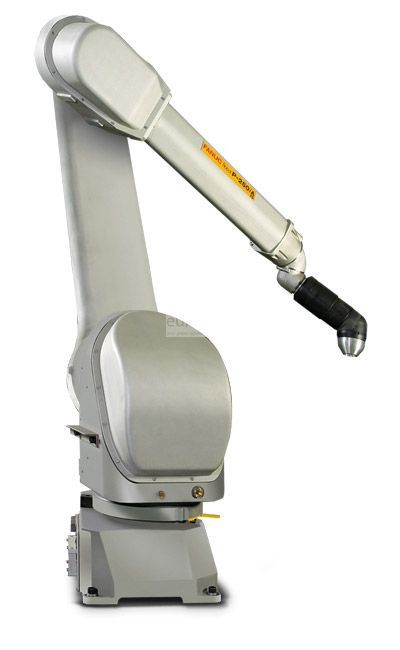

Fanuc P-250iB/15 Paint

В очікуванні надходження

The P-250iB / 15 is a model designed to be flexible in a wide range of functions. Suitable for high volume paint industry solutions with great handling and handling of an extensive work area, its flexibility and powerful reach of 2,800 mm are an excellent solution to replace manual spraying or older automatic systems. Thanks to its hollow wrist of high production and the coating of the cables through the arm that allow to obtain a application of painting of maximum quality. The use of this robot is optimized by its variety of mounting positions on floor, wall, inverted, over rails and in cabin where the robot can access difficult spaces. The P-250iB / 15 has the ATEX certificate for Category 2 and Group IIG (previously zone 1).

R-30iB control system

Latest generation of efficient, compact and stackable FANUC advanced technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance.
Different mounting positions for space saving, easy integration into production cells, installation of various robots
The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With intuitive iPendant Touch, more intelligent and easy to use.

Main specifications

Maximum Load of Robot: 15 Kg
Number of axis: 6
Maximum horizontal reach: 2800 mm
Repeatability: ± 0.2 mm
Controller: 30iB

Motion range (°)

Axis 1: 320°
Axis 2: 280°
Axis 3: 330°
Axis 4: 1080°
Axis 5: 1080°
Axis 6: 1080°

Maximum speed (°/s)

Axis 1: 160°/s
Axis 2: 160°/s
Axis 3: 160°/s
Axis 4: 375°/s
Axis 5: 430°/s
Axis 6: 545°/s

Robot Applications

Painting
